3D Geotechnical Conceptual Modeler

Reduce design and analysis time, and create stunning client visuals.

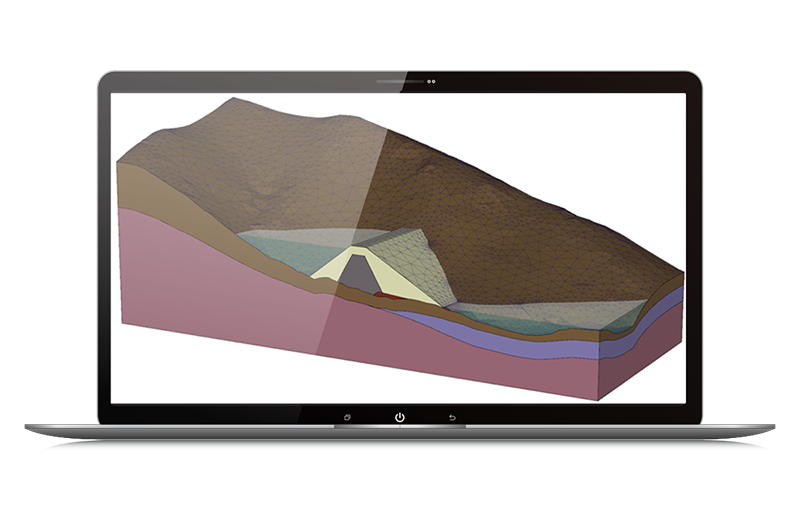

PLAXIS Designer (formerly SVDESIGNER) offers powerful 3D conceptual design capabilities that are specifically built for geotechnical engineers, bridging the gap between raw data and conceptual models. One of the most difficult aspects of designing 3D models is manipulating 3D geometry. Whether it is the representation of complex geostrata or the representation of geotechnical designs – such as roads, embankments, or tailing dams – these structures are often most suited for 3D analysis but are difficult to describe to the computer.

Advance Design to Analysis

PLAXIS Designer conceptual models can be exported to PLAXIS 3D LE, PLAXIS 2D LE, and PLAXIS 2D numerical modeling modules for analysis in the areas of slope stability, stress/deformation, consolidation, and groundwater.

Create Stunning Client Visuals

3D conceptual designs can be captured for display to clients and review of potential designs.

Determine Construction Sequences and Volume Calculations

Generate construction sequences by building layers of material to create roads, embankments, earth dams, or user-defined shapes. Calculate volumes of material to aid in planning.
